Rittal Style PS Combined Cabinet - Industrial PLC Electrical Control Cabinet

Product Category: Industrial Electrical Enclosure | PLC Control Cabinet | Power Distribution Box | Rittal Style Cabinet

Core Advantages: Factory Direct Sales | Customizable | IP54 Protection | High Strength Nine-fold Profile | National Warranty

    description1

    description2

    Product Overview

    Our Rittal style PS combined cabinet is a high-performance industrial electrical enclosure designed for PLC control systems, industrial automation, power distribution and other electrical equipment installation scenarios. Adopting the classic nine-fold profile frame structure imitating Rittal's design, the cabinet features high structural strength, humanized installation design and IP54 dust and water resistance. It is made of high-quality cold-rolled steel plate (customizable SUS304 stainless steel) with professional surface treatment, which is sturdy, durable and corrosion-resistant. It is the ideal economic alternative to original Rittal cabinets, with high cost performance and perfect after-sales service, suitable for various industrial sites such as factory workshops, data centers and communication base stations.

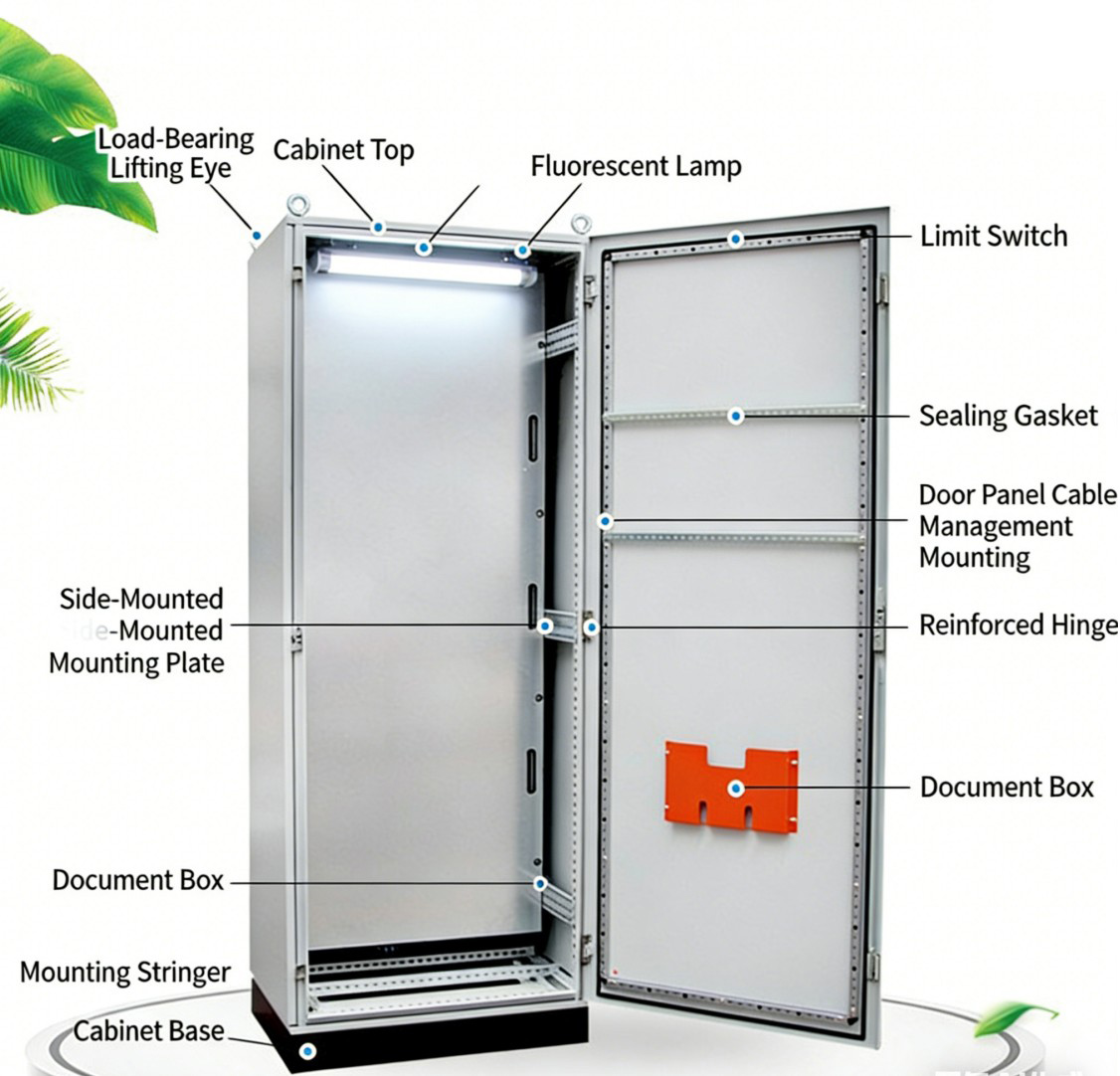

    xujiaea (4)

    Technical Parameters

    Item

    Specification

    Product Material

    Cold-rolled steel plate (galvanized mounting plate); Customizable SUS304 stainless steel

    Protection Grade

    IP54

    Surface Treatment

    Phosphating priming + external powder coating (RAL7032/RAL7035 orange grain)

    Steel Plate Thickness

    Frame: 1.5mm (nine-fold profile); Door panel: 2.0mm; Back/side panel:1.5mm; Mounting plate:2.5mm (3.0mm optional)

    Standard Configuration

    Front door, back panel, mounting plate, cabinet body, plane lock, sealing strip, side panel (optional)

    Core Accessories

    M12 lifting ring, PU foamed sealing strip, aluminum alloy hinge, door panel reinforcing rib, three-section wire inlet bottom plate, limiter

    Applicable Scenario

    PLC control system, industrial automation, power distribution, electrical equipment installation

    Customization

    Support non-standard size, material, color, perforation/lettering, parallel cabinet design

    Standard Size Specifications (PS/BPS Series)

    We provide a variety of standard size specifications for PS (cold-rolled steel) and BPS (SUS304 stainless steel) series cabinets, with the main size combinations as follows (unit: mm), and support non-standard size customization:
    Width
    600 / 800 / 1000 / 1200 mm
    Height
    1800 / 2000 / 2200 mm
    Depth
    500 / 600 / 800 mm
